DESCRIPTION

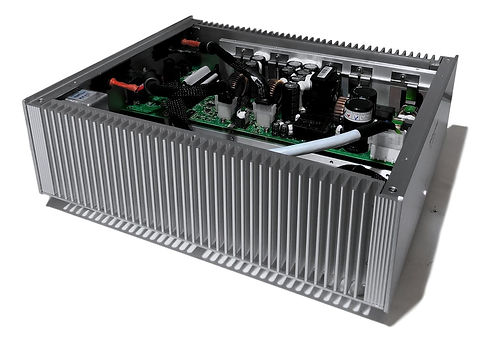

Class D stereo power amplifier based on the powerful Pascal M-PRO2 module with UMAC ™ technology. Self-contained SMPS power supply with UREC ™ technology which provides a variable current supply depending on the power required. The input buffer board is the special high performance Rouge PRO-XM. Very powerful and transparent amplifier. Amazing sound clarity especially in the mid-high range. Protect and clip leds on the bottom panel. Balanced and unbalanced inputs selectable via switch.

TECHNICAL SPECIFICATIONS

  • Output power: 2x800W (4Ω), 2x400W (8Ω)

  • Peak output current 21 A

  • THD+N (1kHz @ 1W) 0.003 %

  • Input impedance: 47Kohm

  • Dynamic range 120 dB(A)

  • Idle noise 55 μV(A)

  • Output impedance (1kHz) 6 mΩ

  • Fully protected

  • EMI and Safety compliant design.

  • Universal mains regulated power supply

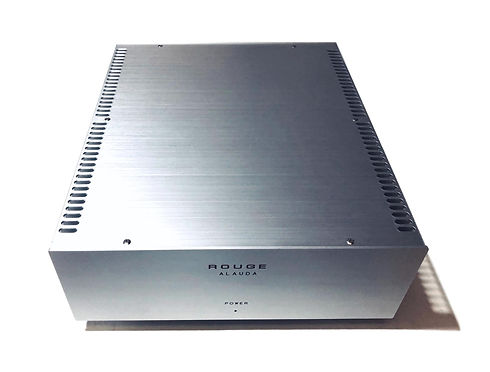

ALAUDA S.jpeg

CHASSIS: hi grade full aluminium

COLOUR: silver

SIZE: 280x330x99mm

WEIGHT: 6,5 Kg

ACCESSORIESI: power cable standard  IEC/SHUKO
