DESCRIPTION

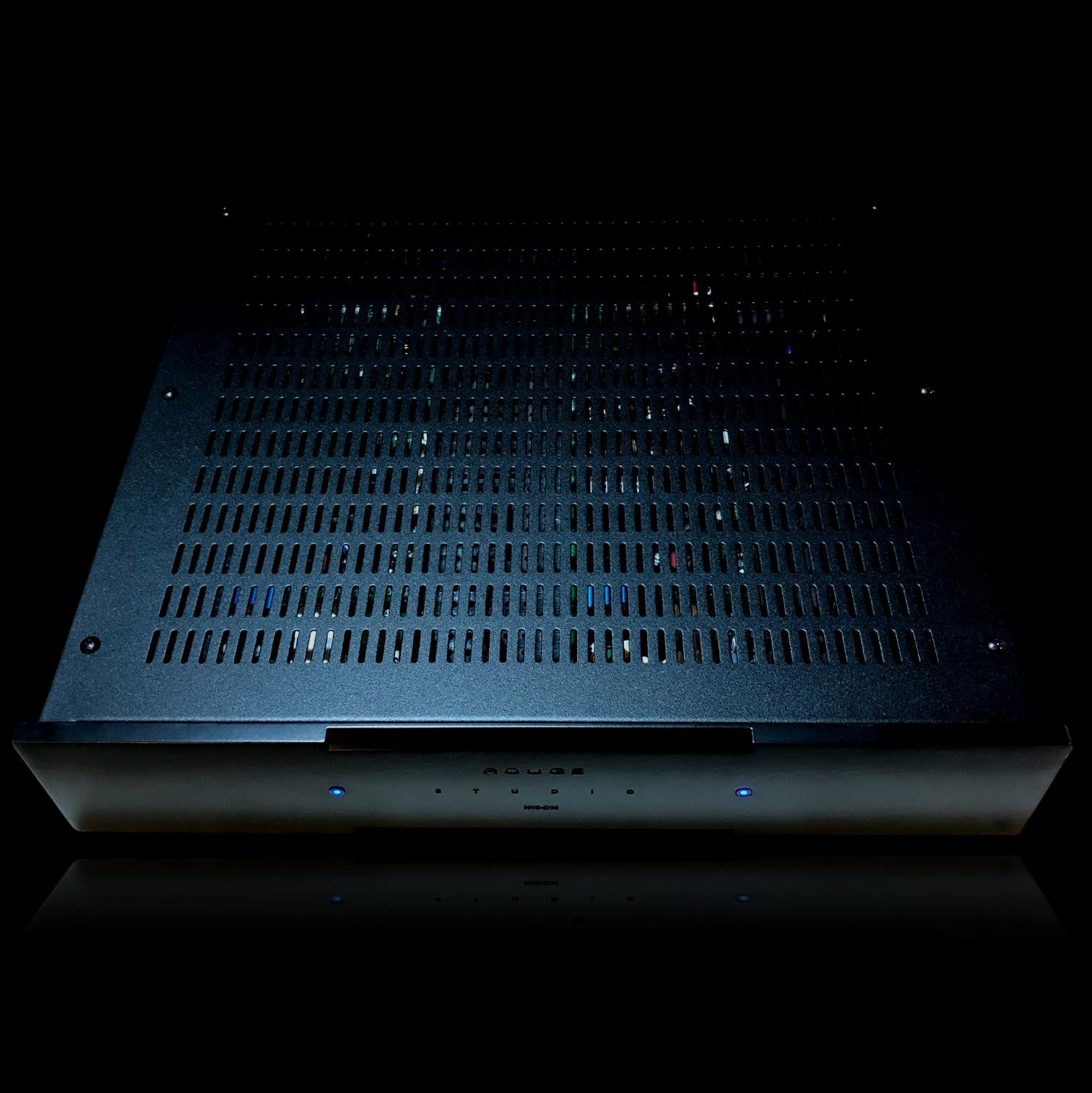

Class D stereo power amplifier based on the ICEpower 1200AS2 module using the new ICEedge chip. Integrated SMPS power supply with PFC (power factor correction) combined with two high quality class D amplifiers. The STUDIO N-10 is a powerful, dynamic, transparent, detailed power amplifierl. Incredible value for money.



The inputs are balanced but it is possible to add a passive Rouge board that allows you to have both XLR and RCA connectors on the rear panel.

n10 led centrale_edited.png

SPECISPECIFICATION

  • Output power: 2x700W (4Ω), 2x600W (8Ω)

  • Continuos output power: 2x145W (4Ω)

  • Distorsion THD + N (1W/1kHz) = 0.005 %

  • Minimum load impedance = 2.7 Ω

  • Dynamic range = 129db

  • SNR = 135db

  • Frequency Response  3hz-50Khz

  • Voltage Gain 25,8db

  • Input Impedance 38Kohm

  • Output idle noise (A) = 25mV

  • Maximum output current (combined ch) 38A

ICEPOWER 1200AS2
Pressione dell'aria
STUDIO 2U FRONT.png
STUDIO N5-6-9-10  RETRO BASE.png

ENCLOSURE: black metal with 10mm aluminum front (Italian manufacture)

SIZE: 435x300x80mm

WEIGHT: 7Kg

INPUTS: 2 XLR

FUSE: 250V / 10A (5x20mm)

ACCESSORIES INCLUDED: IEC / SHUKO terminated standard power cable




DUAL MONO

The integrated asymmetrical power supply of the Icepower1200AS2 module means that the maximum power that can be supplied is obtained using only one of the two class D amplifier channels. Therefore, for those who need much more power and dynamics, we realize the STUDIO N-10 DM, a dual mono power amplifier based on two ICEpower1200AS1 modules (the mono version of the ICEpower1200AS2 module) each one equipped with integrated SMPS power supply combined with one high quality class D amplifier. .


SPECISPECIFICATION

  • Output power: 2x1200W (4Ω), 2x600W (8Ω)

  • Continuos output power: 2x270W (4Ω)

  • Distorsion THD + N (1W/1kHz) = 0.005 %

  • Minimum load impedance = 2.7 Ω

  • Dynamic range = 129db

  • SNR = 135db

  • Frequency Response  3hz-50Khz

  • Voltage Gain 25,8db

  • Input Impedance 38Kohm

  • Output idle noise (A) = 25mV

  • Maximum output current (for each ch) 38A


CUSTOMIZED VERSION

Backup_di_STUDIO N10DM.png

SIZE: 435x400x80mm

WEIGHT: 7Kg

INPUT: 2 XLR

FUSE 250V/10A (5x20mm)

ACCESSORIES: standard power cable IEC/SHUKO


N10-X

3-4-5-6 channels

for HT applications
