STUDIO

N-4

DESCRIPTION

​

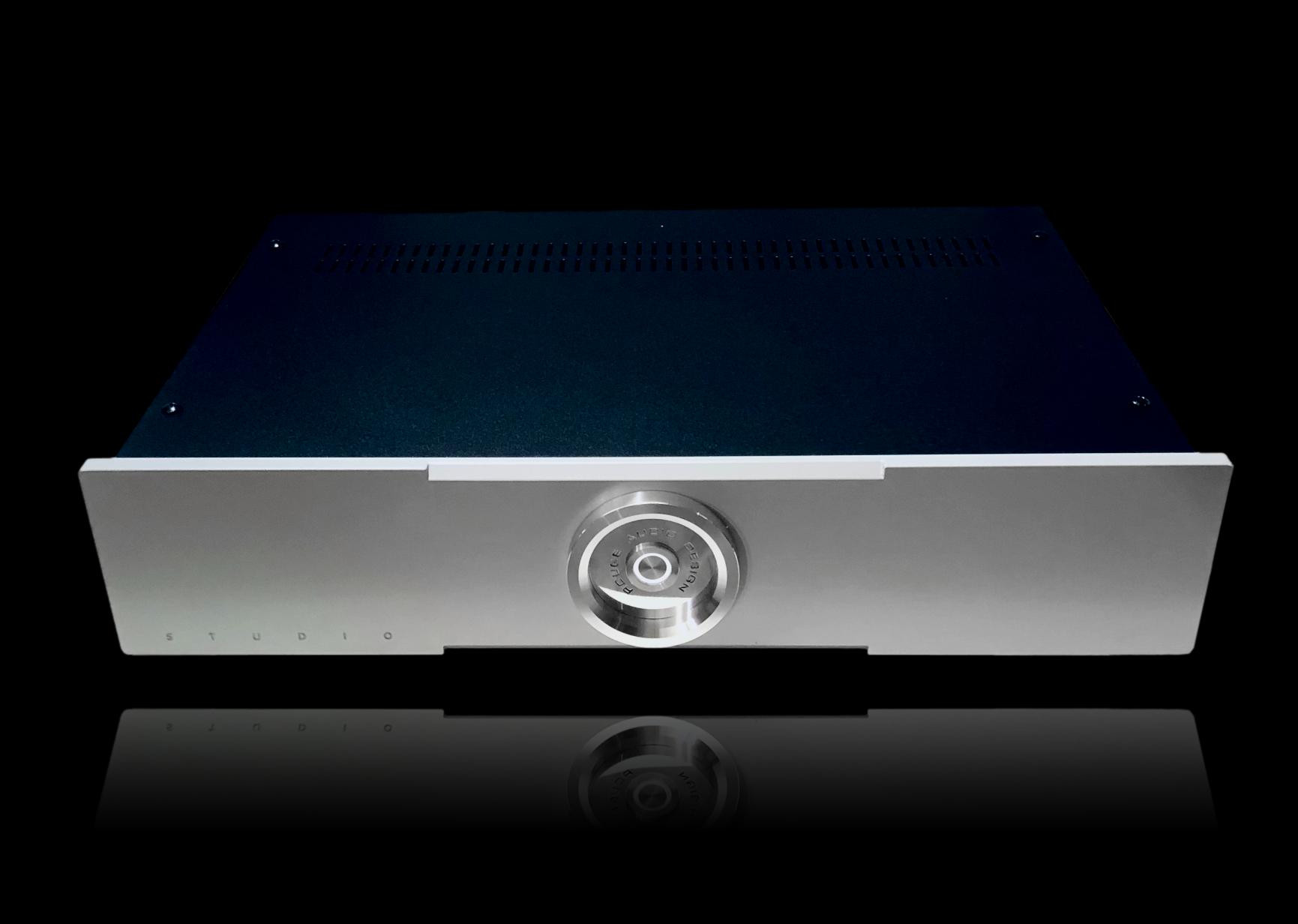

Class D stereo power amplifier based on  Hypex module of the new NCxxxP series with self-contained switching power supply. The modules use the well-known Ncore technology, thanks to which the amplifier is ultra-linear, has noise and distortion levels that are almost non-existent (even lower than those typical of the A class or A / B of the highest quality) and can also manage the more difficult loads thanks to an ultra-low output impedance. Balanced inputs.

The amplifier, depending on which module you choose to use, can be made in three different versions.

VERSIONE A - modulo NC122MP

SPECIFICHE TECHNICHE

• Max output power: 2x115W(2Ω), 2x125W (4Ω), 2x75W (8Ω)

• Distorsion THD + N: 0,0015% (20Hz<f<20kHz, 4Ω. Pout<PR/2)

• Power Bandwidth 20-35Khz

• Frequency Response  10hz-50Khz  (+0/-3dB. All loads.)

• Voltage Gain 25,5db

• Input Impedance 47Kohm

• SNR 121

• Output noise 30mV

• CMRR -71db all frequency

• Maximum output current: 12,5A

• High Line Input Voltage: 190-250Vac

• Low Line Input Voltage: 95-130Vac

VERSIONE B - modulo NC252MP

SPECIFICHE TECHNICHE

• Max ouput power: 2x180W(2Ω), 2x250W (4Ω), 2x200W (8Ω)

• Distorsion THD + N: 0,0015% (20Hz<f<20kHz, 4Ω. Pout<PR/2)

• Power Bandwidth 20-35Khz

• Frequency Response  10hz-50Khz  (+0/-3dB. All loads.)

• Voltage Gain 25,5db

• Input Impedance 47Kohm

• SNR 121

• Output noise 30mV

• CMRR 71db all frequency

• Maximum output current: 17,5A

• High Line Input Voltage: 190-250Vac

• Low Line Input Voltage: 95-130Vac

VERSIONE C - modulo NC502MP

SPECIFICHE TECHNICHE

• Max output power: 2x400W(2Ω), 2x500W (4Ω), 2x350W (8Ω)

• Distorsion THD + N: 0,0020% (20Hz<f<20kHz, 4Ω. Pout<PR/2)

• Power Bandwidth 20-35Khz

• Frequency Response  10hz-50Khz  (+0/-3dB. All loads.)

• Voltage Gain 25,5db

• Input Impedance 47Kohm

• SNR 106

• Output noise 40mV

• CMRR 71db all frequency

• High Line Input Voltage: 190-250Vac

• Low Line Input Voltage: 95-130Vac

CHASSIS: black metal chassis with silver alu front panel

SIZE: 435x300x80mm

WEIGHT: 7Kg

INPUT: 2 XLR (on request 2 x RCA Neutrik)

FUSE 250V/10A (5x20mm)

EMI FILTER

ACCESSORIES: standard power cable IEC/SHUKO

UPGRADE/OPTIONS

​

• TRIGGER

• NC100HF It is possible to add this module to create an additional amplification channel dedicated to the higher frequency audio band (solution suitable for active loudspeakers)
